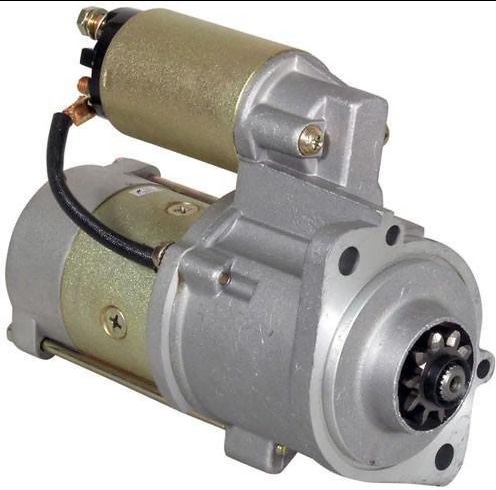

CATERPILLAR STARTER (LS10421)
SUITABLE FOR DP20 & DP25 6BN TRUCKS

Starter type	reduction starter
Type of head	P
Voltage (V)	12
Neck diameter D1 (mm)	82.5
Pinion diameter D2 (mm)	38.5
Number of teeth	10
Direction of rotation of the pinion	CW
Overall length of the starter L (mm)	249
Distance between pinion and flange L2 (mm)	22.5
Distance drive cover (mm)	30
Number of holes	2
Position of fixation holes	55-25-00
Distances between fixation holes	115
Diameter mounting holes D3 (mm)	11.4
Oil sealed	NO
